Virtually There: Presentations that Pop!

Jeremy Wheeler
December 7, 2020March 3, 2022 8 mins

Contents

  1. Introduction
  2. Basic Workflow
  3. What are the costs involved?
    1. Recommend Combo Options 1 ($328.88):
    2. RecommendCombo Options 2 ($183.99):
    3. Recommend Combo Options 3 ($92.91):
    4. Other recommend items:
  4. OBS Studio Software
    1. Download OBS Virtual Cam and Install
      1. PC Platform:
      2. Mac Platform:
    2. How to Install without installer:
    3. OBS Frequently Asked Questions
    4. OBS Training Resources & Tools
  5. WebCam Setup
  6. Adding a background to your live feed
  7. Enabling Webcam Chroma Key
  8. Cropping your live webcam feed
  9. Adding a media background to your live feed
  10. Incorporting your live feed into a Presentation
  11. Audio Input/Output
  12. Presenting through ZOOM
  13. Best Practices

Introduction

In light of recent events with COVID-19, many of our customers have made a shift in how they conduct business. They have rapidly enabled new capabilities and expanded others to allow for companies to continue remotely. This post is aimed at increasing your knowledge of conducting remote presentations.

Joe Graziano provides an excellent overview of leveraging OBS Studio when conducting his remote presentations.

Basic Workflow

This is the basic workflow to get this solution working:

What are the costs involved?

NOTE: We are not endorsing these products but have used them in our own studios and find them to bring a lot of value to the overall solution.

Recommend Combo Options 1 ($328.88):

GraphicItemCostURL

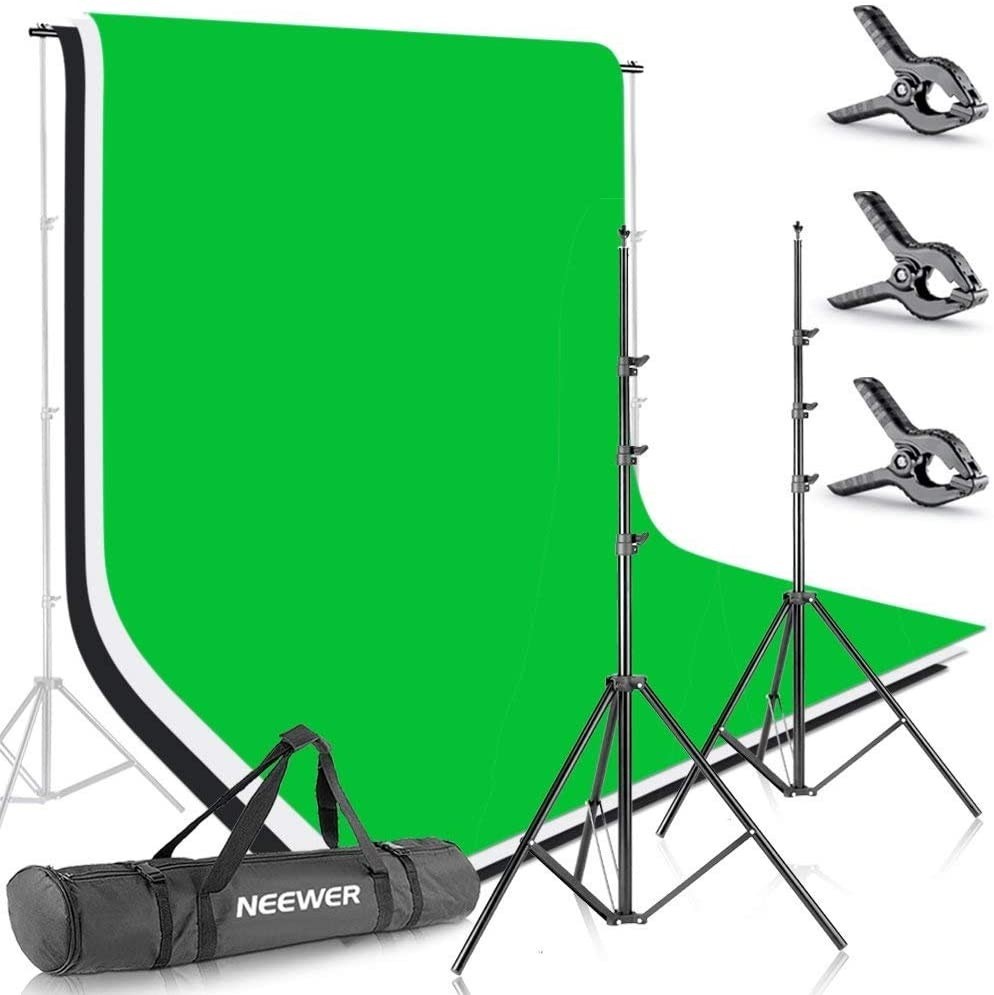

Neewer Photo Studio 8.5 X 10 feet/2.6 X 3 Meters Backdrop Stand Background Support System with 6 X 9 feet/1.8 X 2.8 Meters Fabric Backdrop (White, Black, Green) $99https://tinyurl.com/y4d5ez6s
Westcott 130 9 x 10 Feet Green Screen Backdrop Wrinkle Resistant $74.9https://tinyurl.com/y36jgct3

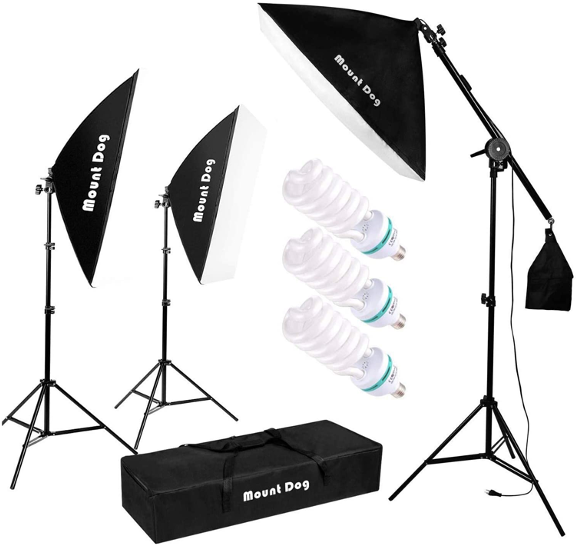

MOUNTDOG Photography Studio Softbox Lighting Kit Continuous Lighting System Photo with 3pcs E27 95W Bulbs $84.99https://tinyurl.com/y6tpcsb9

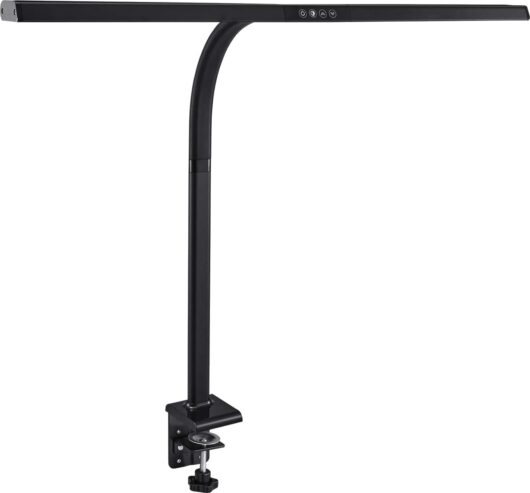

PHIVE LED Desk Lamp, Architect Clamp Task Table Lamp, 20W Super Bright Extra Wide Area Drafting Work Light, 4 Color Modes, 5 Brightness Levels $69.99https://tinyurl.com/y3w6pnt2

RecommendCombo Options 2 ($183.99):

GraphicItemCostURL
Neewer Photo Studio 8.5 X 10 feet/2.6 X 3 Meters Backdrop Stand Background Support System with 6 X 9 feet/1.8 X 2.8 Meters Fabric Backdrop (White, Black, Green) $99https://tinyurl.com/y4d5ez6s
MOUNTDOG Photography Studio Softbox Lighting Kit Continuous Lighting System Photo with 3pcs E27 95W Bulbs $84.99https://tinyurl.com/y6tpcsb9

Recommend Combo Options 3 ($92.91):

GraphicItemCostURL
Webaround Portable Webcam Background, Big Shot, 56", (Chroma Key Green Screen) (Gen2) 75https://tinyurl.com/y69p4yud
Clip on Light Reading Lights - iVict 24 LED USB Book Clamp Light with 3 Color Modes, 10 Brightness Dimmer and Auto Off Timer, Eye Protection Kids Desk Lamp, 360 ° Flexible Gooseneck Bed Night Light 17.91https://tinyurl.com/y5k3wgzq

Other recommend items:

GraphicItemCostURL
Cheaplights - Heavy Duty Muslin Clamps 4 1/2-inch 6 Pack$8https://amz.run/42NR
Rugs Grippers, 16 PCS Premium Large Size Anti Curling Rug Gripper. Keeps Your Rug in Place and Makes Corner Flat. 2XAdhesive for Any Rug with Yellow Tape Technology, RenewableÿSticky Side to Floors $16https://amz.run/42NK

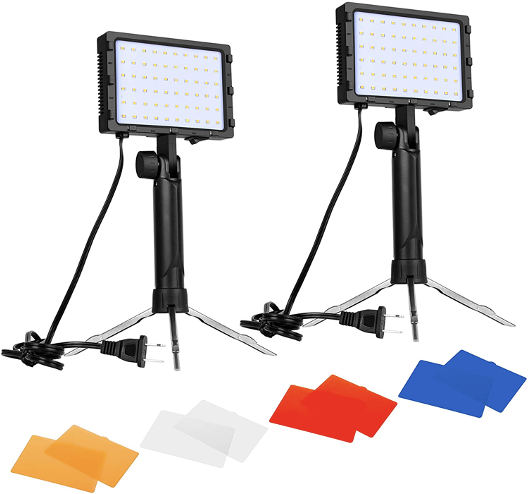

Emart 60 LED Continuous Portable Photography Lighting Kit for Table Top Photo Video Studio Light Lamp with Color Filters - 2 Packs$37https://amz.run/42NN

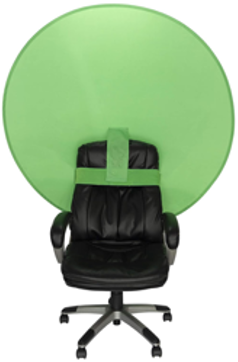

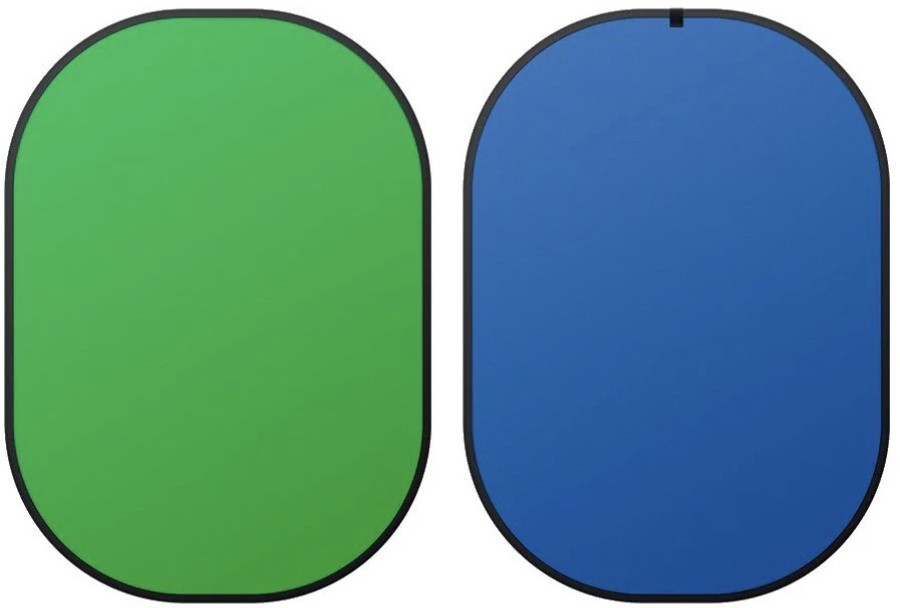

THE BACKDROP PORTABLE WEBCAM GREEN SCREEN$65https://shopremoteoffice.com/

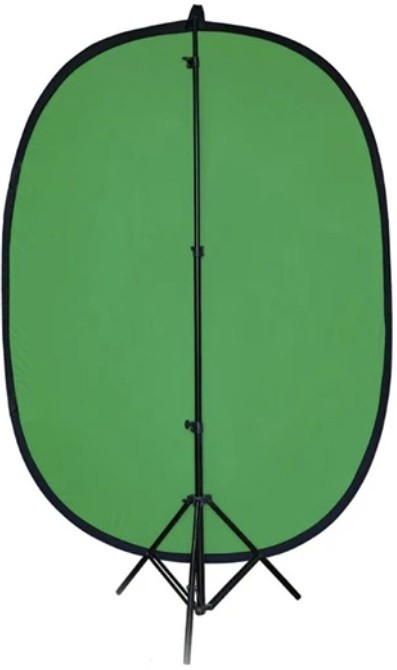

THE BACKDROP STAND$28https://tinyurl.com/y5ganaz6
2" Width ProTapes Pro Gaff Premium Matte Cloth Gaffer's Tape With Rubber Adhesive, 50 yds Length x, Fluorescent Green (Pack of 1) $21https://amz.run/42NQ

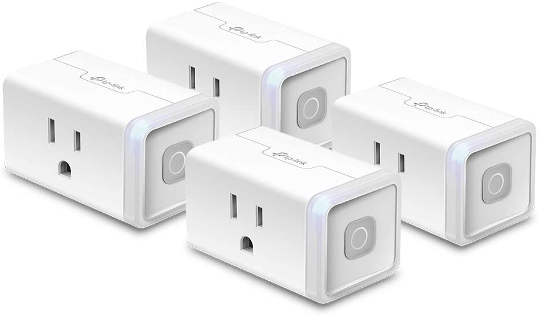

Kasa Smart Plug by TP-Link, Smart Home WiFi Outlet Works with Alexa, Echo, Google Home&IFTTT,No Hub Required, Remote Control,12 Amp, UL Certified, 4-Pack (HS103P4) $27https://amz.run/42NP

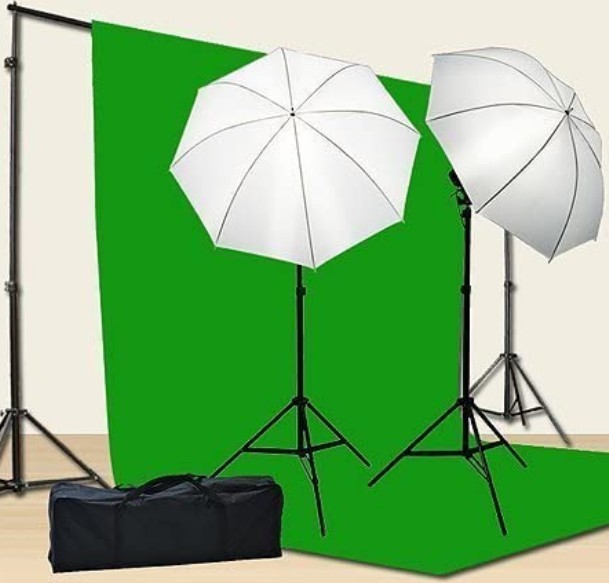

Chromakey Green Screen Kit 800w Photo Video Lighting Kit 10x12 feet Green Screen and Backdrop Support System$99https://amzn.to/35FXnfT

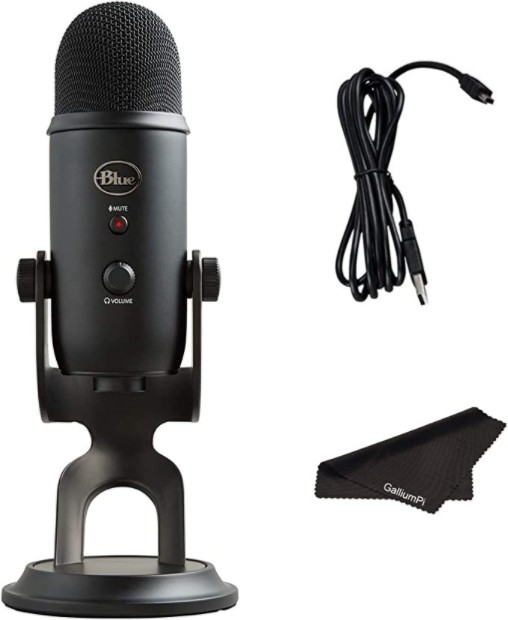

Blue Yeti USB Microphone with 4 Pickup Patterns, 3 Condenser Capsules, Mic Gain Control & Adjustable Stand $210https://amzn.to/36Jkc1F

OBS Studio Software

Download OBS Virtual Cam and Install

Note: The lastest versions of OBS Studio Include the Virtual Cam feature and do not require these added steps for the plugin.

PC Platform:

https://github.com/CatxFish/obs-virtual-cam

Mac Platform:

https://github.com/johnboiles/obs-mac-virtualcam

This plugin provides a DirectShow Output as a virtual webcam.

How to Install without installer:

1) Go Github Release to find zip file

2) Unzip OBS-VirtualCam2.0.1.zip and put it to your obs-studio install folder

3) Run CMD as Administrator and register 32bit DirectShow source
ex: regsvr32 “C:\Program Files (x86)\obs-studio\bin\32bit\obs virtualsource.dll”

4) Do it again to register 64bit DirectShow source
ex: regsvr32 “C:\Program Files (x86)\obs-studio\bin\64bit\obs-virtualsource.dll”

Register failed during installation
It’s usually due to dependency reason . There’s a chance you need to install visual studio 2017 redistributable package (2013 if the plugin version is 1.x.x ), also the DirectShow interface needs the DLLs swscale-4.dll and avutil-55.dll in you obs install directory.

OBS Frequently Asked Questions

For more infromation please see the OBS Frequently Asked Questions

OBS Training Resources & Tools

Training CourseCostInformation
OBS Studio Master ClassFREEThis is EposVox's “Master Class” for OBS Studio - "’I've spent basically all of 2017 researching, scripting, revising, shooting, and producing this course, and I’m quite proud of what it’s become. This should be a fantastic all-in-one reference guide with the software, with just minimal updates required for new features. This course will primarily focus on the Windows version of OBS Studio. I have some minor points that reference differences with macOS and Linux setup, but I cannot currently go in-depth with those versions at this time."
OBS Studio Master Class Course IndexFREEEposVox's OBS Studio tutorial course for 2017 - "I’ve previously created a large number of tutorials for past OBS versions, but things have changed enough in recent years that I wanted to provide a detailed, in-depth series of videos covering how to set up, optimize, and use OBS Studio for recording videos, podcasts, or creating dynamic and engaging live streams. I truly believe this is THE BEST and MOST IN-DEPTH OBS tutorial course available online."
LEARN EVERYTHING OBS IN 30 MINUTES Ultimate Beginners Guide - OBS Tutorial 2020FREEThis is the Ultimate Beginners Guide for OBS Studio 2020. Learn everything about OBS Studio in just 30 minutes! This tutorial covers basic layout, building scenes, stream settings, recording settings, browser sources, adding cameras, game capture, custom transitions, audio mixing, studio mode, and much more!
Virtual PowerPoint Greenscreens! Change a PowerPoint Slide and Change an OBS Scene - automatically!FREEVirtual PowerPoint Greenscreens! Can we automate OBS scenes from PowerPoint with C# and WebSockets? You want obscure? We've got obscure. Here's a 13 min video where we see the code needed to have an OBS Scene Change trigger when a PowerPoint Slide Change is triggered. Change a PowerPoint Slide, Change an OBS Scene - automatically!
Open Broadcaster CoursesVariesVarious courses by different trainers

WebCam Setup

1) Select the ‘+’ button under ‘Sources’.

2) Select ‘Video Capture Device’

Provide a name for your  capture device or leave with  the default and select ‘Ok’

1) On the next dialog select  your webcam from the drop-  down options

Select ‘Ok’

1) Select your webcam frame and right-click

2) Highlight ‘Transform’ in the context menu

3) Select ‘Fit to screen’

Adding a background to your live feed

1) Select the ‘+’ button under the Sources window to add an image

2) Select ‘Image’

3) If new, give your image a unique name. Images can be re-used across scenes and save in OBS

Select ‘OK’

Locate and select the image you want to use.

Checking ‘Unload image when not showing’ removes the image from memory. This is helpful if you have lots of scenes that you plan to cycle through

1) Right click the image

2) Highlight ‘Transform’

3) Select ‘Fit to screen’ and your image will be full-screen

In the sources block you want this image at the bottom so that it remains your ‘Background’

1) Select the image you added

2) Click the down arrow until it is at the bottom of the sources

Once we arrive at this step any sources you add will be on top of the background. Like other images, cameras,  windows, or videos.

Enabling Webcam Chroma Key

1) Select your camera under sources and right- click

2) Select ‘Filters’

You can give each Chroma Key filter  a unique name to enable multiple  versions for different scenes or testing.

1) Your background should still be shown with no masking

2) Select the ‘+’ button to add a filter

3) Select ‘Chroma Key’ and proceed to the settings to tweak further

Your background will fade somewhat

1) Chose your color type, you can pick Green, Blue, Magenta or even make your own Custom color

2) Dragging the Similarity will look at your background color and you can dial in the removal

3) Here is an example of adjusting your Chroma Key to fade the green background:

Adjusting the crop you  can trim the edges for  an even smoother look.

Cropping your live webcam feed

Even with Chroma Key,  some background elements can creep in, especially around the sides.

To fix this we add a Crop/Pad filter like you did with Chroma Key.

Adjusting the crop you can trim the edges for an even smoother look.

Adding a media background to your live feed

1) Lets say you want an animated background.

2) Click + under sources and ‘Media Source’ Give it a name and click ‘Ok’

1) Browse to your file

2) Set the video to ‘Loop’ this way it restarts while in use

1) Just like when adding an Image background select the image source.

2) Click the arrow down to push the Media Source to the bottom of the scene.

Incorporting your live feed into a Presentation

You can add your  presentations by adding  a ‘Window’ source and  selecting your running  application

Move the Window  capture below your  Video capture so you  are still on top for  the recording.

Audio Input/Output

1) Select the ‘+’ button to add your audio device.

2) Select ‘Audio Output Capture’

Add an Audio Output  device and give it a  good name for future use

Select from the list of  current audio devices  configured in your  system. Next add an Audio Input like your USB or headphones microphone.

1) Select the ‘+’ button to add your audio device.

2) Select ‘Audio Input Capture’

From the list of  inputs on your  system select the  device you want to use.

Presenting through ZOOM

1) Select ‘Tools’

2) Select ‘VirtualCam’

3) You can make this plugin ‘AutoStart’ for future OBS sessions

Once you have downloaded the Virtual Cam plugin from the OBS website we need to activate it so you can share content and your live stream through Zoom.

Create a new Scene and set it to ‘Windowed Projector’

1) Right-click your Scene

2) Highlight ‘Windowed Projector (Scene)’ and Left-click to select

Note: Best practice is to use “Fullscreen Projector (Scene)”, if possible. You will need a 2nd monitor to use this feature.

Here you can see the results of  your new scene with any  elements you may have added.

Note: When using ‘Window  Projector’ The new projector  window will be very choppy, and  you will need to resize it before  sharing it through zoom. If the  window size is not correct when  you do your presentation, some  text will blur to participants!

To get this scene into Zoom start your video, choose settings and select ‘Video’

1) Select the up-arrow to the right of the ‘Start Video’ icon in Zoom. Or select the gear icon on the Zoom client.

2) Select ‘Video Settings…’ or select ‘Video’ under settings.

1) Select ‘Video’

2) Select the drop-down the list under Cameras and choose ‘OBS- Camera’

3) Select Background & Filters

4) Select ‘None’

5) Check the checkbox ‘I have a green screen’

6) When you are ready to share content along with your live video stream:

1) Select the ‘Share’ icon in Zoom followed by the new ‘Window Projector (Scene)’

2) Select ‘Share’

Next setup your presentation in Slide Show mode by choosing ‘Browsed by an Individual (Window)

1) Select ‘Slide Show’ from the ribbon within PowerPoint

2) Select ‘Set Up Slide Show’

3) Select ‘Browsed by an individual (window)’

Duplicate this scene so you can  now have multiple options, add  other elements like  backgrounds, videos or  additional presentations.

1) Right-click on the scene you need to duplicate.

2) Select ‘Duplicate’

Provide a name to the newly  duplicated scene

This video pulls it all together  showing you the elements of  setting up a basic scene. This next video briefly shows the effect of switching between scenes.

Best Practices

1) Toggling the ‘Eye’ will show or hide that Source from your scene

2) Locking a source will prevent you from being able to edit the properties. You can still hide (eye) or move it around in the source list

Note: I also recommend not using an animated-based background when presenting. If you need to pause the live session for any reason, this will be noticeable to your participants. You will sometimes want to “pause” the feed to fix your camera’s focus.

Thank you for your time, I hope others will find value from this post.
